Gateway ALR 9000 Processors

2 x 3 = 6

The system supports up to two, three processor daughter boards. In systems with a single processor board, a terminator board occupies the second slot.

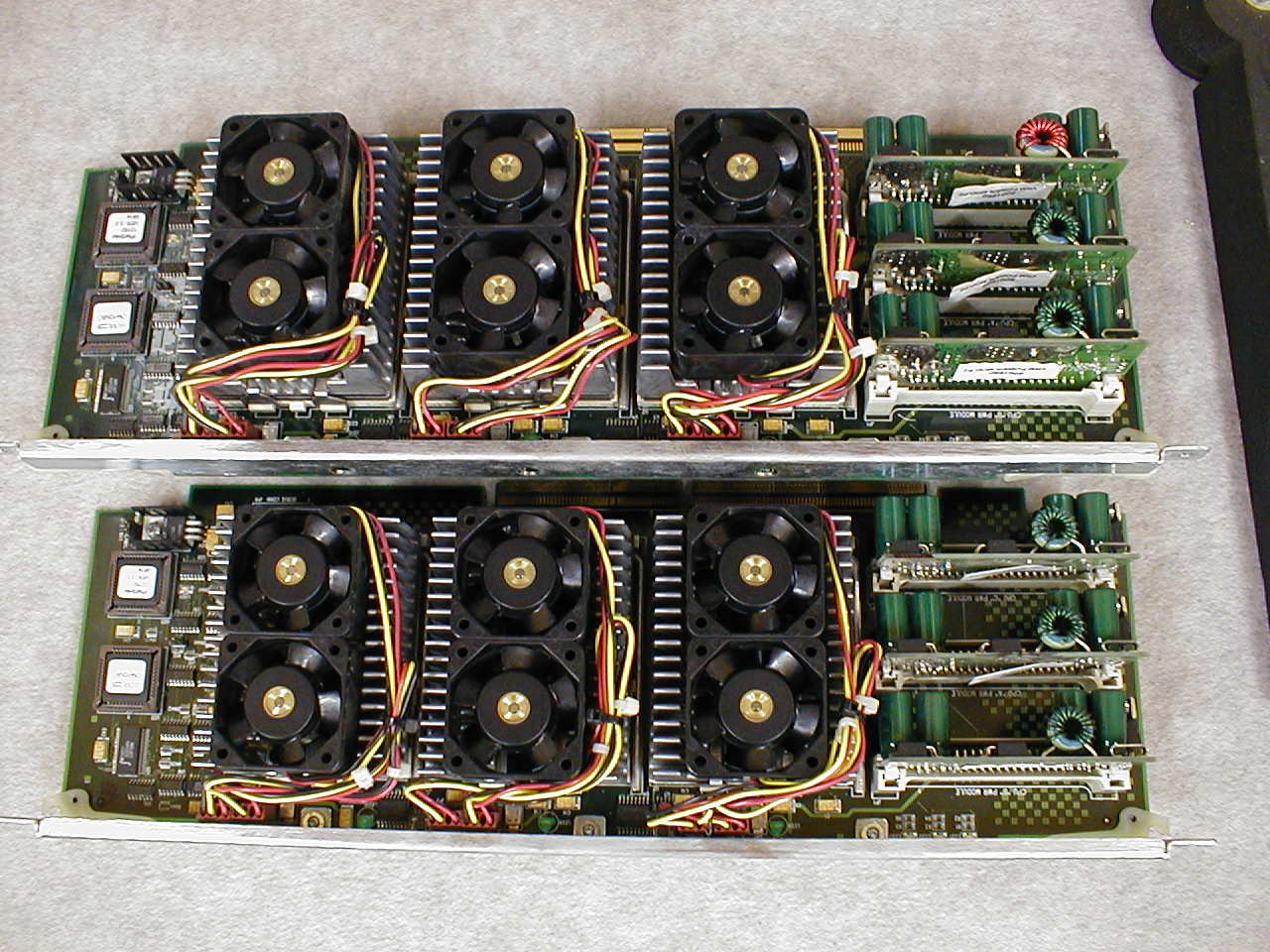

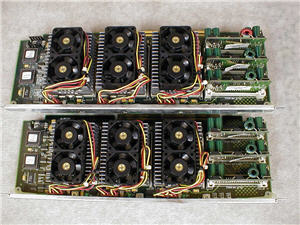

The processor boards shown here are equipped with the 1M L2 Pentium Pros and the original equipment "dual cool" heatsinks. Note that the two fans on each heatsink connect to separate connectors. Processor boards that support up to 512k L2 Pentium Pro only have one fan power connector per CPU socket.

On the right-hand end of each processor board are a trio of VRMs.
